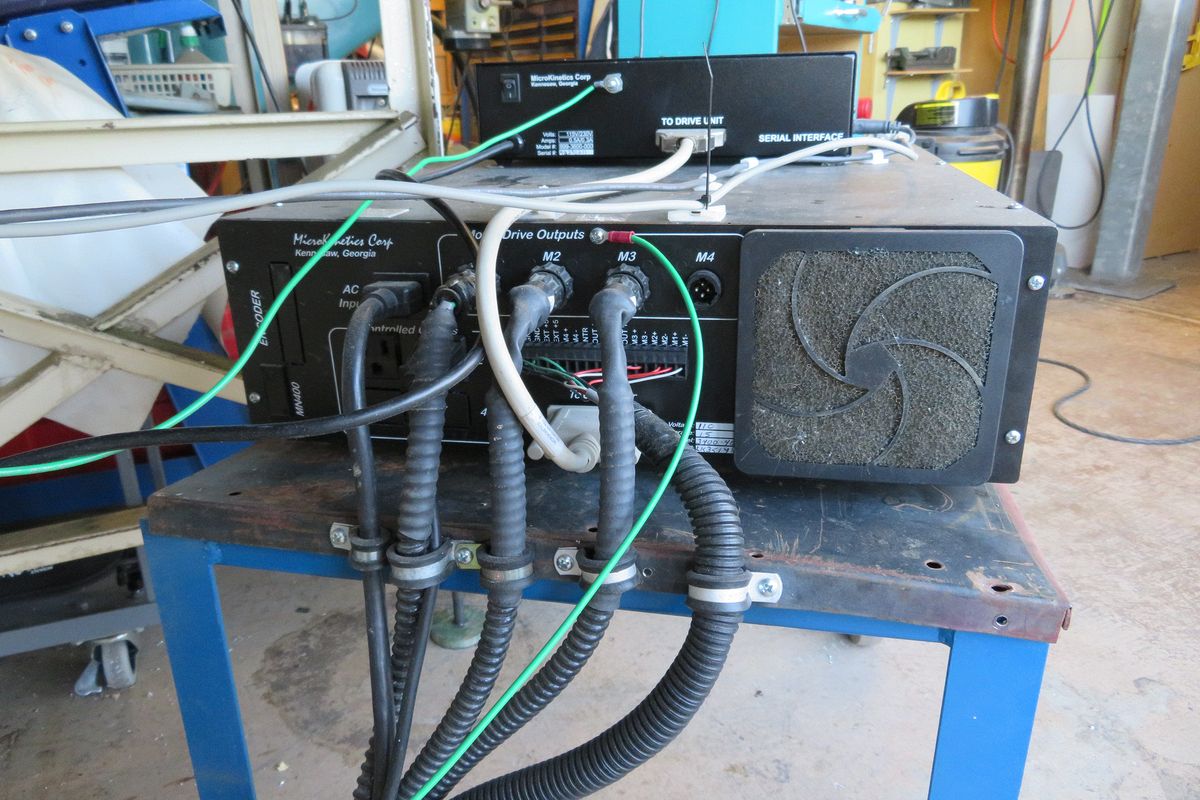

Rear view of the MicroKinetics Drive Rack, with the MN400E Motion Controller on top.  Motion controller connects to the drive rack via a SCSI type cable (HD50 on one end and DB25 on the other) which looks just like a typical SCSI interconnect but is wired entirely differently (thanks MK)

The connector just below the DB25 on the Drive Rack is the cabling out to the limit switches for the X/Y/Z axis'.
