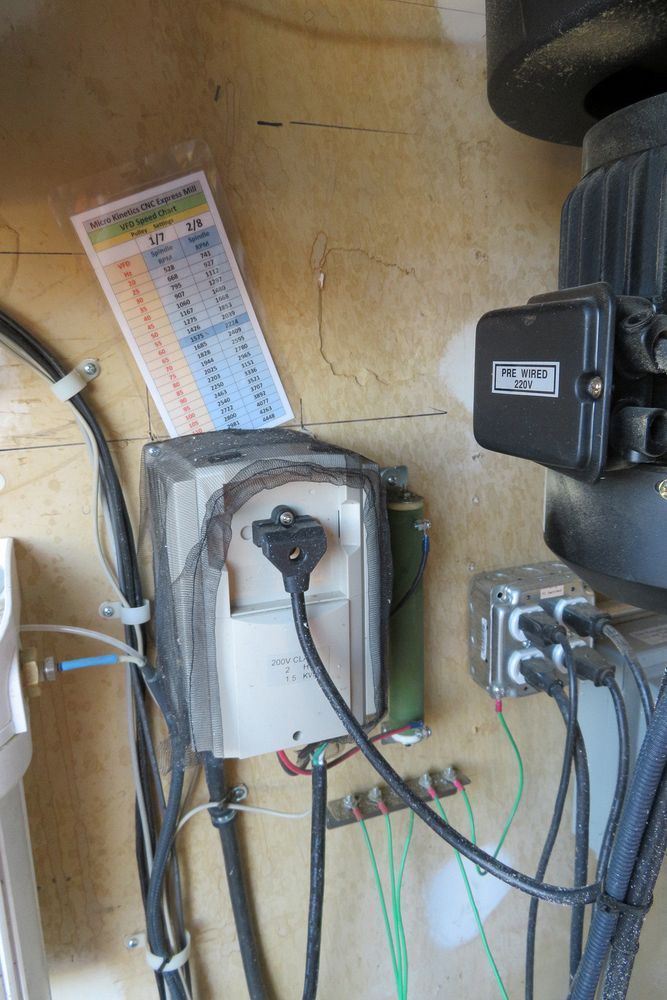

Teco 7300CV Variable Frequency Drive main unit.  The display head was moved via a remote cable to the head of the milling machine.  The braking resistor is mounted to the right of the unit.  Belt speed crib chart is hanging above the unit.

The mosquito netting keeps fine metal swarf out of the unit.  If I had it to do over, the unit would have been mounted high up on the wall...
