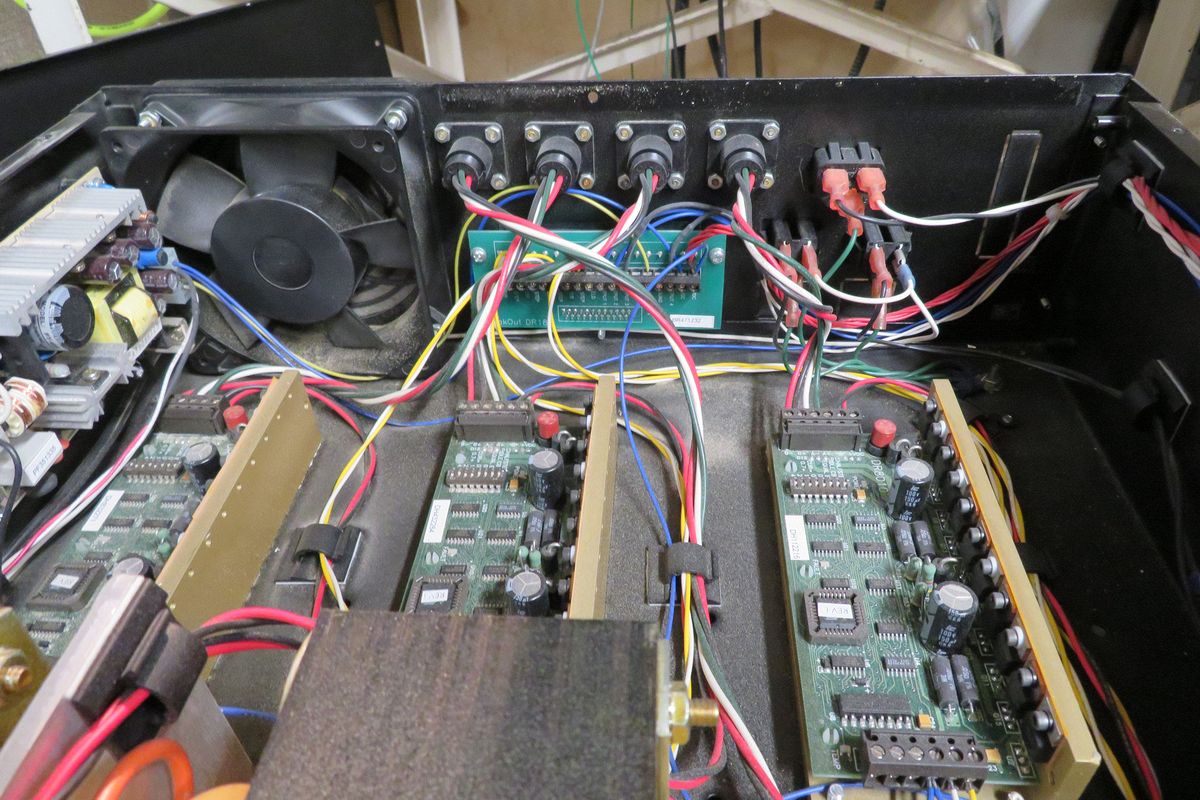

Rear wall view of the Micro Kinetics Drive Rack cabinet.  The circuit card in the middle is the combination DB25 and strip connector that feeds the MN400E Motion Controller and Limit Switches (respectively).  5V reference power supply on the left side wall and the X/Z/Y driver modules (left to right).
