Workpiece Stop

Prev | Index | Next

Copyright © 2015,

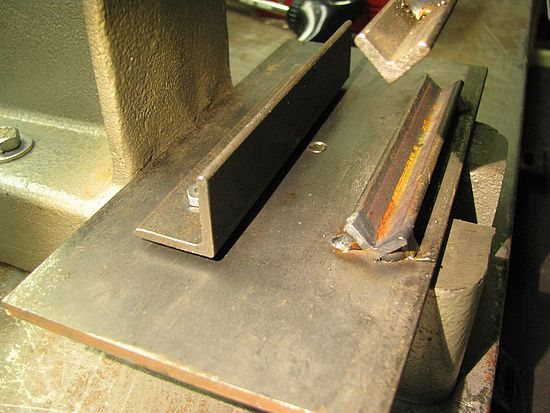

Stop is rotated into the use position.  The Neomidium magnets are strong enough to keep the stop in place unless you slam it hard.  The end of the bolt peaking up through the base plate is an Allen cap screw that comes up from the bottom to hold the base plate in place.  In the test setup I used magnets.
