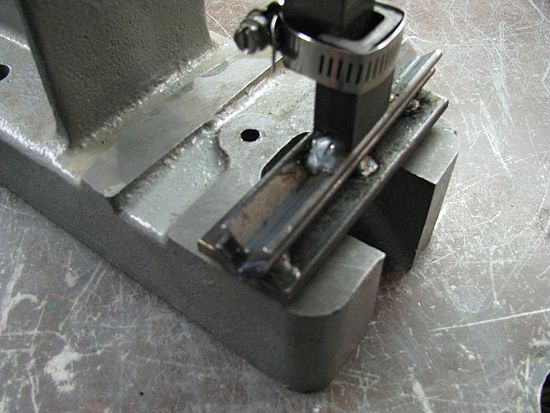

This is the initial attachment of the upper and lower dies while testing the design.  The channel has not been milled out and the upper die would rock a bit on the ram.  Once the lower die was milled out the hose clamp worked fine, the allen cap screw looked better in the end.  The lower die was held in place with two Neomidium magnets and would occasionally move during use if you slammed the ram down hard.
