Wheel Head Assembly

UP   HOME



Only minor machining was required to finish the wheel head assembly.



Motor Mount

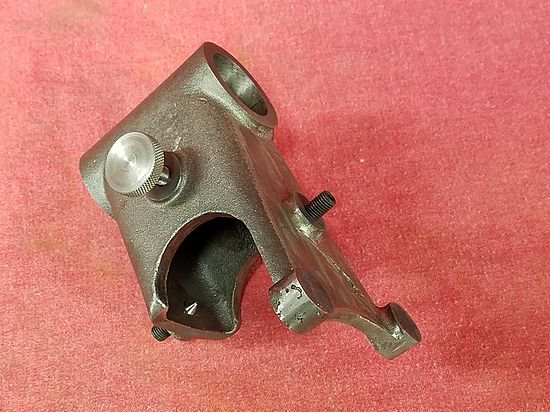

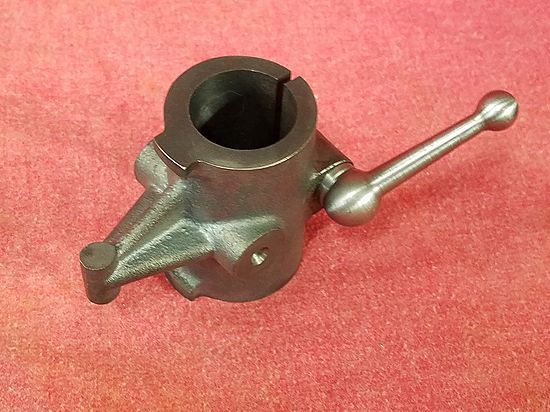

Spindle/Motor bracket needed only the pivot holes and the adjustment knob holes drilled and tapped. (LH)    The column bracket (RH) was completed prior to my acquisition.

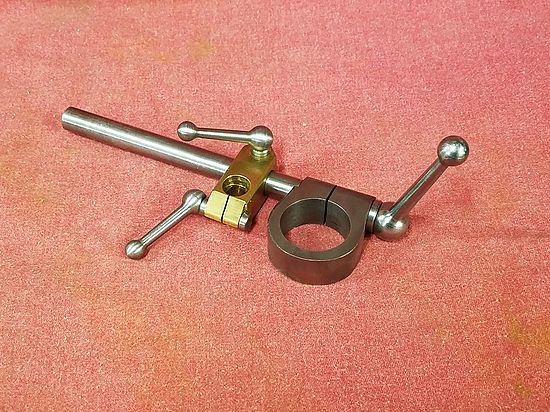

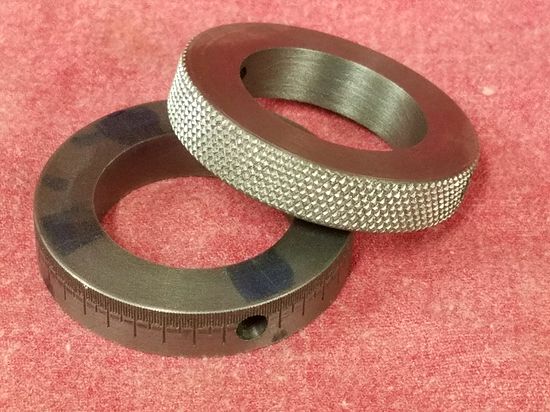

The column stops (LH) were fully machined upon arrival.  Paul's engraving is nothing short of amazing.
