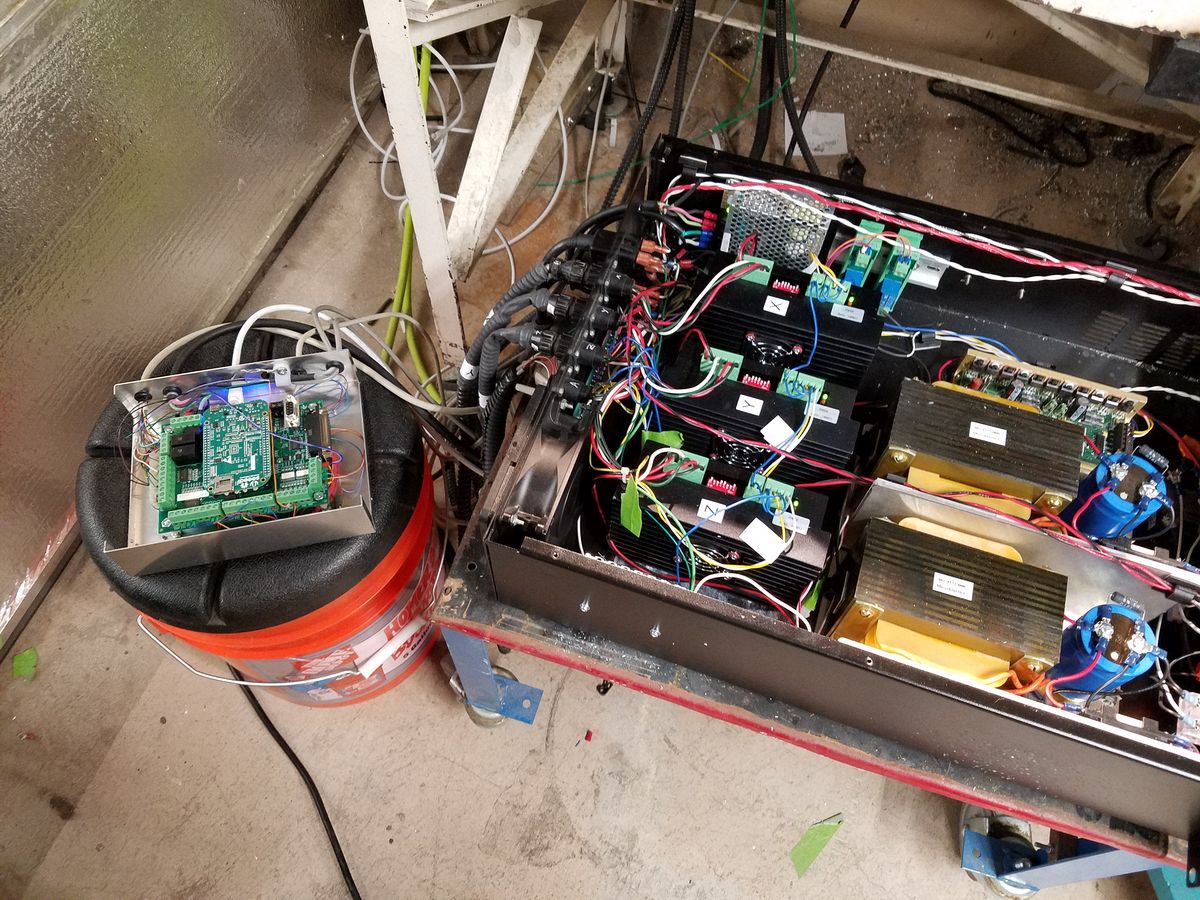

First test run with the Acorn relocated to a separate enclosure. The original plan was to have the Acorn and its power supply fastened to the underside of the drive rack enclosure's lid. With the new (and much larger) stepper driver modules this became impossible. The Acorn's power supply is mounted to the side wall in the upper left corner of the view. The two DIN relays to the right of the power supply are for the Mist and Flood coolant systems.
