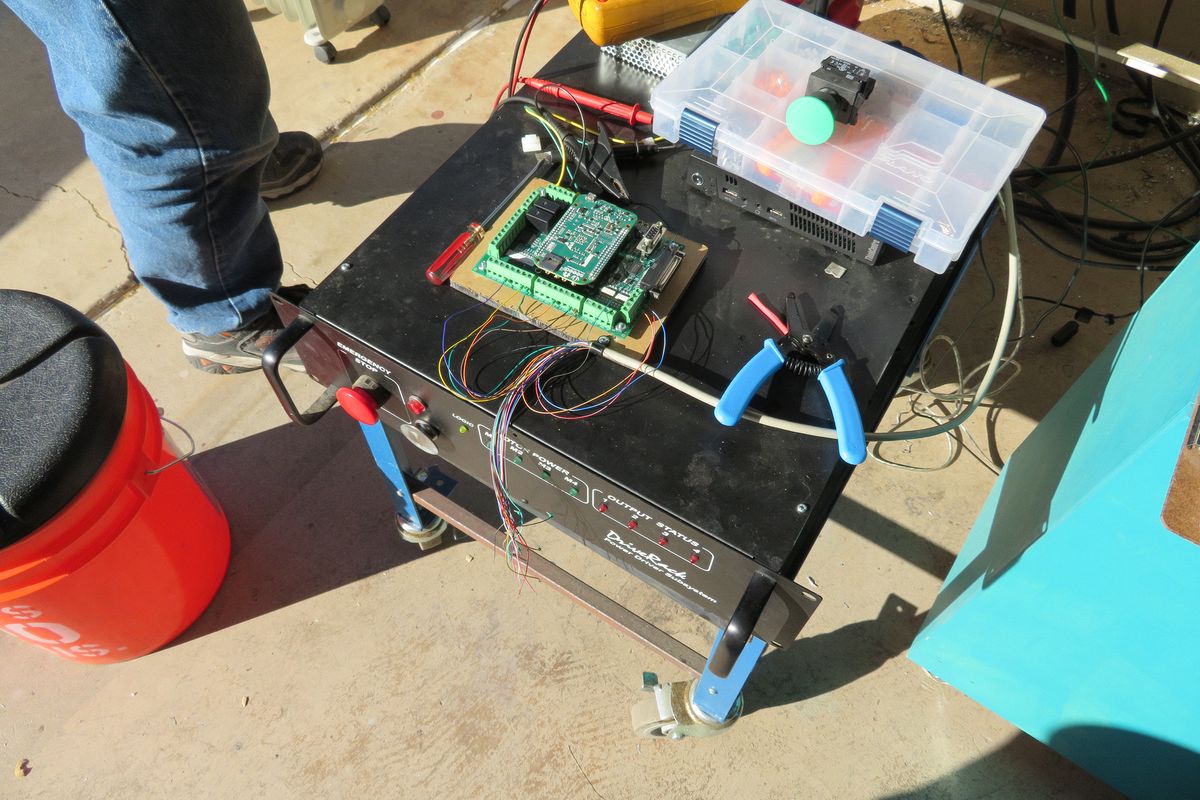

Acorn in the process of being wired. The Acorn board was mounted to a think piece of Lexan to prevent shorting or damage. Ultimately it will be mounted to the underside of the Micro Kinetics Drive Rack box along with the 24VDC power supply which is hiding under the Fluke meter. The Lenovo Tiny is under the pin connector assortment box. The data cable leaving the Acorn goes to the DB25 input connector on the back of the Drive Rack.
