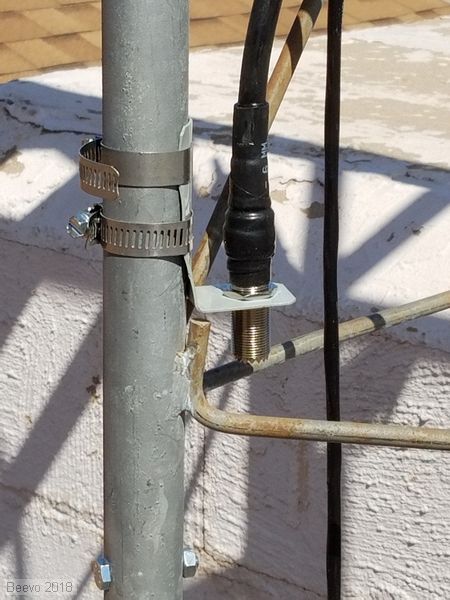

Home brew coax coupler brackets. All the bends are made before installation. The foot was purposely bent to fit the tower leg. When I painted them I had a piece of masking tape on the back to leave a bare spot for electrical contact with the tower.
|

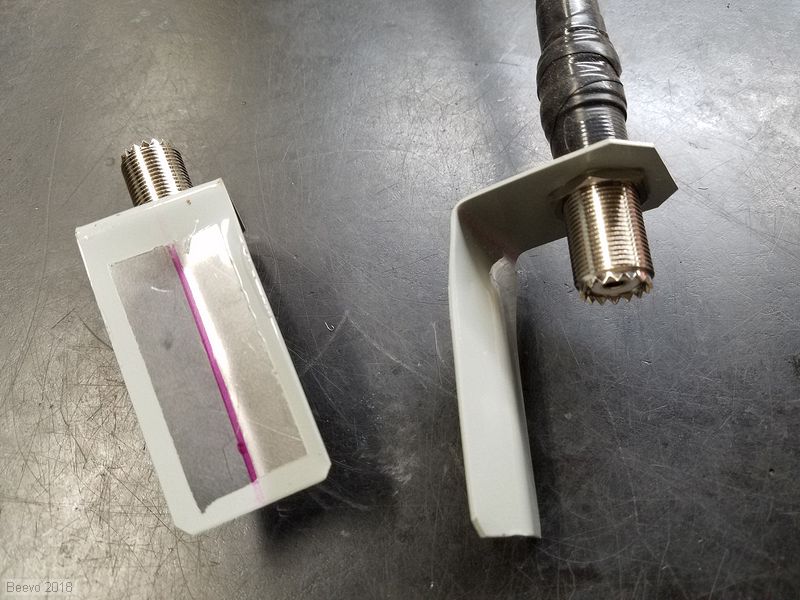

Details of the
Coax Coupler brackets. To form them I cut the mild steel strips, drilled
the hole with a big Uni-Bit. Using a
Vice Brake,
I bent the 90º tab. The V shape was also bent using the vice break.
A piece of masking tape was put on the back and the part sprayed with the
Rustoleum Professional enamel.
