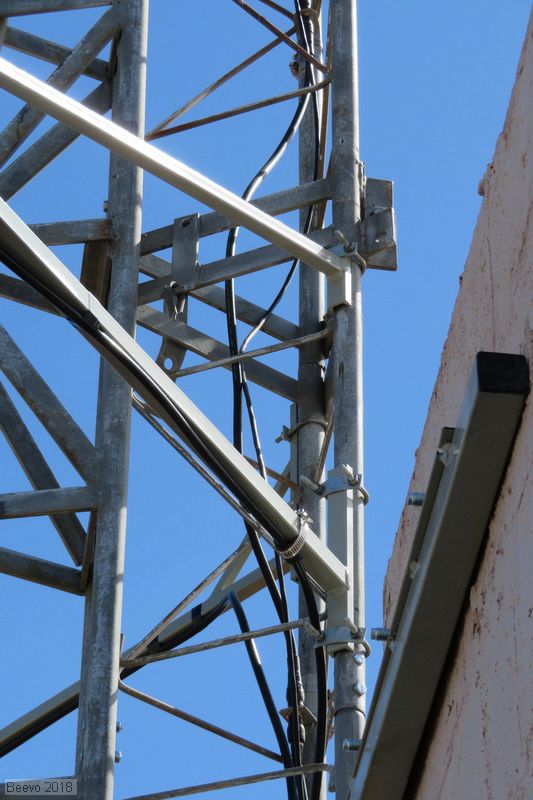

Detail of the outrigger mounting (6m Ringo). Pieces of 1" steel structural channel are used to clamp to the tower legs using U bolts. 1" square tubing was used for the arm itself. Nice thing about this method is you can hang the arm yourself if it is not too heavy. I installed the U bolt at the top, leaving it loose enough to slip the channel underneath. with it left loose I could turn the arm around the tower leg to the position I wanted and then clamp it tight.
|
